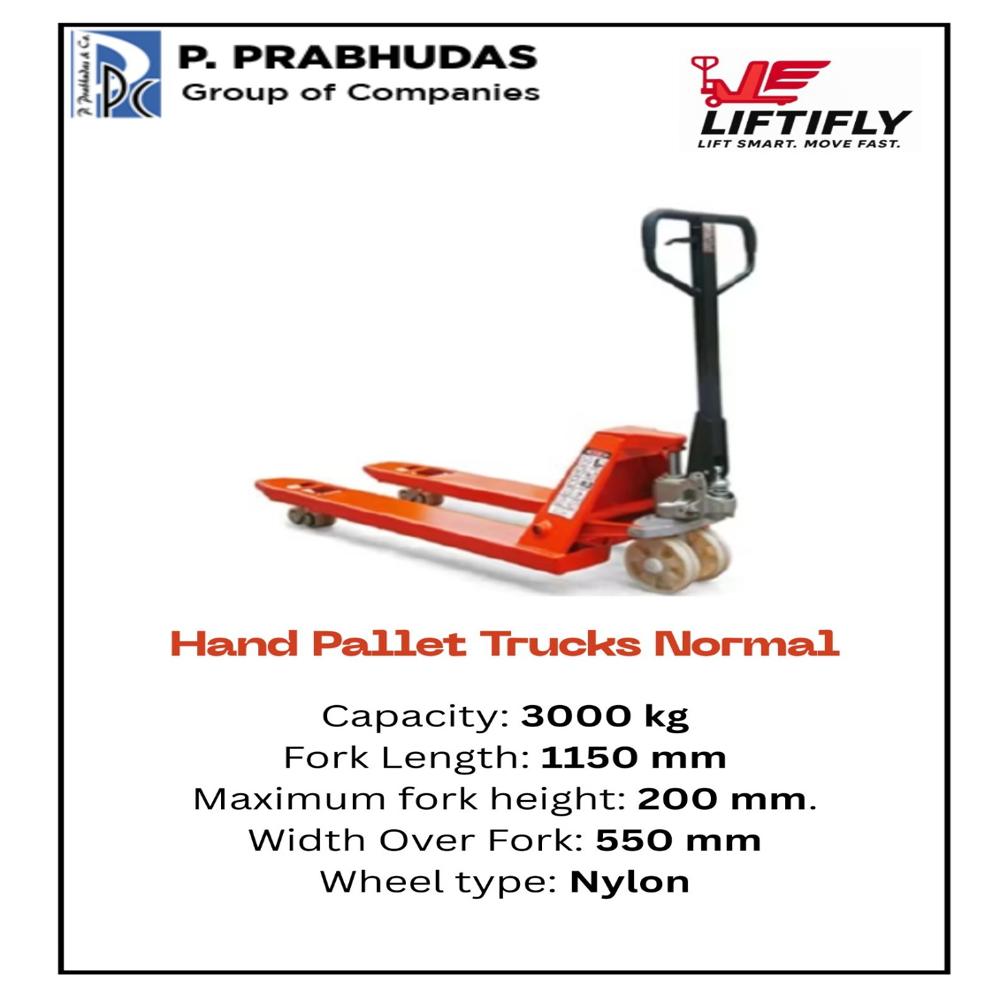

Lift fly Hand Pallet Truck

Lift fly Hand Pallet Truck Specification

Traveling Speed
Manual Operated

Brake
No Brake (Manual)

Driver Motor
Not Applicable (Manual)

Lifting Speed
18 mm per stroke

Load Capacity
2500 kg

Application
Material Handling / Warehouse

Turning Radius
1265 mm

Condition
New

Power Source
Manual

Rated Capacity
2500 kg

Max. Lifting Height
190 mm

Max. Lifting Weight
2500 kg

Min. Lifting Height
85 mm

Fork Length
1150 mm

Fork Width
550 mm

Dimensions
1150 x 550 x 1220 mm (L x W x H)

Handle Material
Powder Coated Steel

Operating Temperature Range
-10C to 50C

Net Weight
68 kg

Steering Wheel Size
180 x 50 mm

Frame Material
Heavy Duty Steel

Tyre Type
PU/Nylon (Options Available)

Fork Wheel Size
80 x 70 mm (Tandem)

Pump Type
Cast Iron with Overload Protection Valve

Paint Type
Epoxy Powder Coating

About Lift fly Hand Pallet Truck

A Hand Pallet Truck (manual pallet jack) is a manually operated material-handling tool used to lift and move palletized goods over short distances. It works using a hydraulic pump that raises the forks when the handle is pumped. Commonly used in warehouses, factories, and retail stores, it is cost-effective, durable, and easy to operate, with typical load capacities ranging from 1 to 3 tons.

Rugged Design for Intensive Handling

Crafted from high-grade heavy duty steel with an epoxy powder coated finish, the Lift fly Hand Pallet Truck stands up to demanding warehouse conditions. The durable pump includes overload protection, safeguarding both operator and load while maintaining efficiency. Its ergonomic, powder-coated handle and seamlessly engineered wheels support long hours of manual use.

Manual Operation for Flexible Material Movement

The hand pallet truck operates solely by manual input, making it ideal for environments without access to power sources. Its minimal lifting height of 85 mm and a maximum of 190 mm accommodate a range of pallet sizes, while the compact maneuverability facilitates easy navigation through crowded warehouse aisles.

Custom Wheel Options and Safety Features

Choose between PU or nylon wheels to suit your floor surface, minimizing wear and noise during operation. The integral cast iron pump equipped with an overload protection valve enhances safety by preventing accidental overloading, ensuring secure and hassle-free material transport.

FAQ's of Lift fly Hand Pallet Truck:

Q: How does the overload protection valve benefit the user during operation?

A: The overload protection valve in the cast iron pump prevents the lifting of loads beyond the 2500 kg rated capacity, protecting both the operator and equipment from potential damage or safety hazards.

Q: What surfaces are suitable for the Lift fly Hand Pallet Truck's wheels?

A: With optional polyurethane (PU) or nylon wheels, the truck is adaptable to various flooring, including concrete and smooth warehouse surfaces. PU wheels offer quieter movement and floor protection, while nylon is more resistant to chemicals and suitable for rougher terrain.

Q: When should regular maintenance of the hand pallet truck be performed?

A: Routine maintenance should be carried out every three to six months, depending on frequency of use. Regular inspections of wheel integrity, hydraulic oil, and frame condition help prolong the truck's operational life and safety.

Q: Where is the best environment to use this hand pallet truck?

A: This hand pallet truck is ideal for warehouses, distribution centers, and factories within an operating temperature of -10C to 50C, ensuring reliable performance even in challenging climates.

Q: What is the process for lifting and transporting pallets with this truck?

A: To operate, insert the forks into a pallet, engage the pump using the handle to lift up to 190 mm, then manually maneuver the truck to the desired location. The tandem fork wheels ensure smooth transit even with heavy or uneven loads.

Q: How does the manual operation provide an advantage over powered pallet trucks?

A: Manual operation allows for independent use without reliance on electricity or batteries, offering consistent performance in areas with limited access to power. It also reduces maintenance complexity and operating costs.

Q: What are the key benefits of the epoxy powder coated frame and powder coated handle?

A: The epoxy powder coated frame and handle provide enhanced durability and resistance against corrosion, scratches, and wear, ensuring the pallet truck maintains its structural integrity and appearance over extended periods of use.
