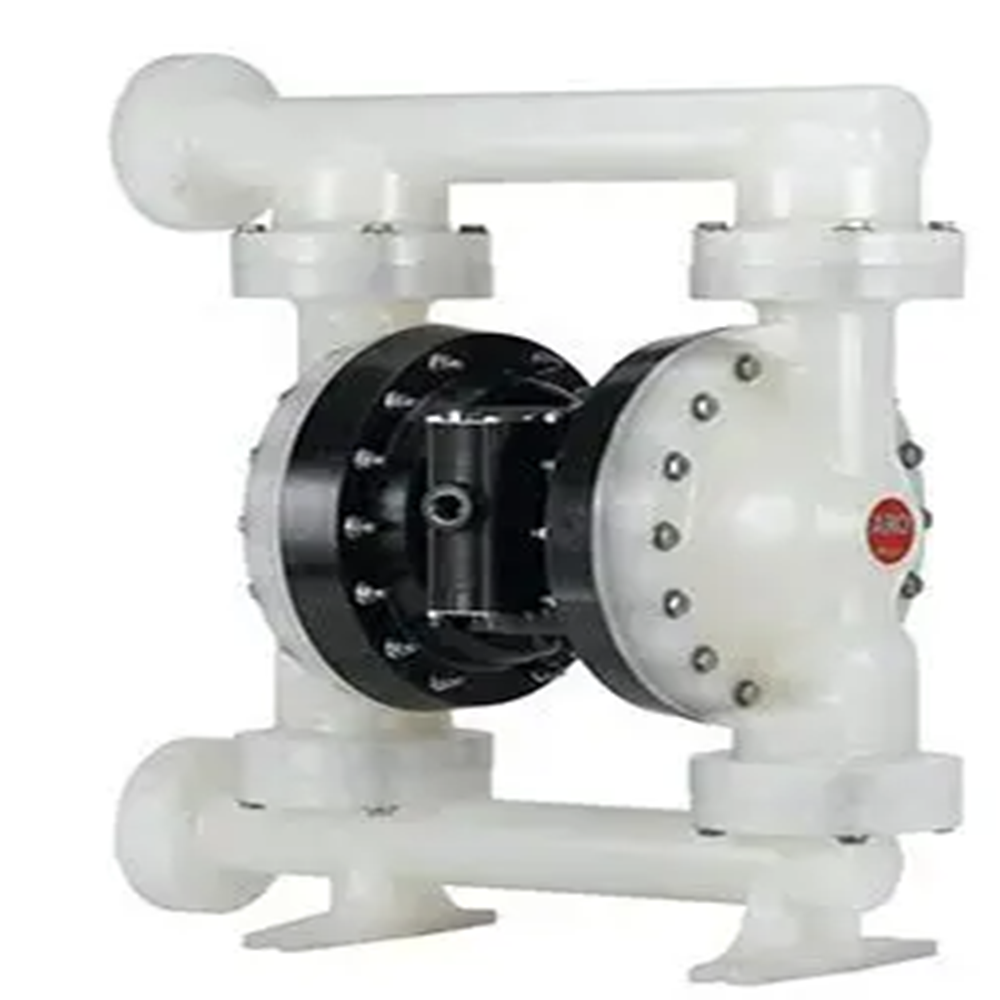

Diaphgram Pump

Diaphgram Pump Specification

Speed
1450 rpm

Voltage
220 V

Inlet/Outlet
1/2 BSP

Head Size
70 m

Max Suction
5 m

Frequency
50/60 Hz

Noise Level
65 dB

Mounting Type
Foot Mounted

Control System
Manual/Automatic

Working Temperature
-10C to 60C

Discharge Pressure
7 bar

Theory
Electromagnetic Pump

Flow Rate
40 L/min

Caliber
15 mm

Material
Diaphgram Pump

Structure
Diaphragm Pump

Power
0.75 kW

Standard
ISO 9001

Product Type
Diaphgram Pump

Fuel Type
Electric

Pressure
7 bar

Usage
Liquid Transfer, Chemical Dosing

Application
Chemical, Pharmaceutical, Water Treatment

Suction Type
Positive displacement

Seals Type
PTFE

Priming
Self-priming

Pump Type
Double Diaphragm

Capacity
40 L/min

Max Particle Size
2 mm

Protection Class
IP55

Connection Type
Threaded

Color
Blue

Duty Cycle
Continuous

Weight
15 kg

Ambient Temperature
-20°C to 50°C

Diaphgram Pump Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Supply Ability
5000 Pieces Per Month

Delivery Time
7 Months

Sample Available
No

Sample Policy
Free samples available with shipping and taxes paid by the buyer

Packaging Details
Packing Boxes

Main Export Market(s)
Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Asia, Africa

Main Domestic Market
All India

About Diaphgram Pump

A diaphragm pump is a type of positive displacement pump that operates by using a flexible diaphragm to move fluids. The diaphragm is typically made of rubber, PTFE (polytetrafluoroethylene), or another flexible material, and it is attached to a mechanical actuator that makes it move up and down in a reciprocating motion. This movement creates alternating suction and pressure within the pump chamber, drawing in fluid on the intake stroke and then expelling it through the discharge valve on the compression stroke.

Versatile and Robust Chemical Pumping Solution

Designed for versatility, this diaphragm pump excels in continuous-duty applications ranging from chemical transfer to precise pharmaceutical dosing. It can efficiently handle a maximum particle size of 2 mm and delivers a reliable flow of up to 40 liters per minute. Its robust structure ensures performance under varied environmental conditions, with an operating temperature range of -10C to 60C and ambient tolerance from -20C to 50C.

Safety and Performance Assured

This electromagnetic diaphragm pump meets the rigorous standards of ISO 9001 certification and benefits from IP55-rated protection, ensuring durability and safety when used in challenging industrial scenarios. Its self-priming and positive displacement features guarantee smooth and efficient operation for both manual and automatic control systems.

Ideal for Indian Industrial Markets

With its blue finish, threaded 1/2 BSP connections, and foot-mounting design, this pump is suitable for diverse industrial sectors in India, including chemical processing, pharmaceuticals, and water treatment facilities. Supported by various suppliers, exporters, and service providers, its a reliable choice for productive, trouble-free performance.

FAQs of Diaphgram Pump:

Q: How does the pump handle different types of liquids, including those with particulates up to 2 mm?

A: This double diaphragm pump is specifically designed to transfer a variety of liquids, even those containing particles up to 2 mm in size. Its positive displacement mechanism and PTFE seals ensure consistent performance with corrosive chemicals or fluids containing small solids, making it ideal for chemical dosing and transfer.

Q: What are the main benefits of using this pump for chemical and water treatment applications?

A: The pump offers continuous duty operation, precise dosing, and high chemical resistance due to its robust diaphragm construction and PTFE seals. Its self-priming capability, IP55 protection, and ability to operate within a wide temperature range enhance its reliability in both chemical and water treatment environments.

Q: When should I perform routine maintenance on this diaphragm pump?

A: Routine maintenance practices, such as inspecting seals and checking for leaks, should be performed every three to six months or according to your process demands. Regular maintenance ensures uninterrupted operation and extends the life of the pump, especially in continuous-duty industrial environments.

Q: Where can this pump be installed, and what are the recommended operating conditions?

A: The pump is suitable for indoor and outdoor industrial installations, provided the ambient temperature is between -20C and 50C and its mounted securely using its foot-mounted base. Ensure the pump is protected from dust and water spray to maximize the IP55 rating benefits.

Q: What is the process for connecting and starting this pump?

A: Connection involves securing the inlet and outlet via the threaded 1/2 BSP ports, followed by priming the pump (if required), and ensuring the correct electrical supply of 220 V at 50/60 Hz. Once installed, operation can be controlled manually or set to automatic, according to your process needs.

Q: Can this pump operate continuously without overheating or excess noise?

A: Yes, the pump is designed for continuous-duty cycles, and it operates with a noise level 65 dB. Its efficient motor (0.75 kW) and electromagnetic design maintain optimal temperature and noise levels, ensuring smooth and quiet performance throughout extended operations.
